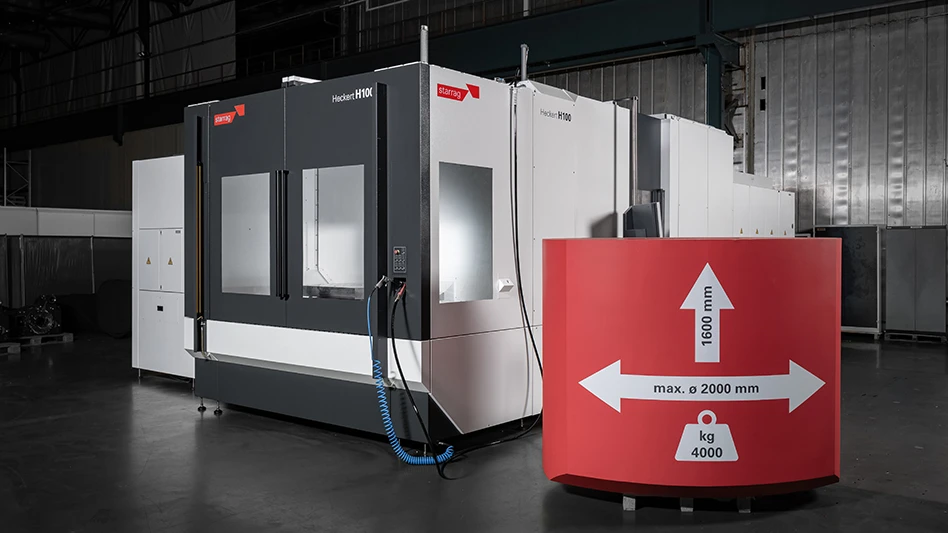

Starrag’s new Heckert H100 compact machining center has a pallet size of 39" (1,000mm) and will replace the previous Heckert HEC 1000 4-axis center.
With the Heckert H50 to H100 compact machines, Starrag is continuing the success story of the Heckert HEC series. The new machining centers offer maximum precision, performance, and speed in as little space as possible with long-term quality.
This also applies to the Heckert H100, which has dimensions of 35" x 181"(8,900mm x 4,600mm) and enables travel paths of 69"(1,750mm) along the X axis, 51"(1,300mm) along the Y axis and 55"(1,400mm) along the Z axis. As an option, the Y-travel can be extended up to 55" (1,400mm) and the Z-travel can be extended up to 71" (1,800mm). The displacement circle diameter is 79"(2,000mm).
The Heckert H100 is suitable for large parts and, with a loading weight of 8818 lb. (4,000kg), is also suitable for heavy parts that would otherwise have to be machined on a large machining center. On the other hand, many savings can be made. These savings start right from the initial investment in the machine, and continue with transport costs, the foundation and the required installation area, going all the way through to the machining process.
The Heckert H100 is easier to automate than its predecessor, ensured by extended clamping hydraulics and simplified interfaces to pallet storage systems and robot cells. Improved integration into the customer's infrastructure was also realized – with central connections for technological cold water, cooling lubricant and data exchange. There is also a larger selection of spindles and much more.
