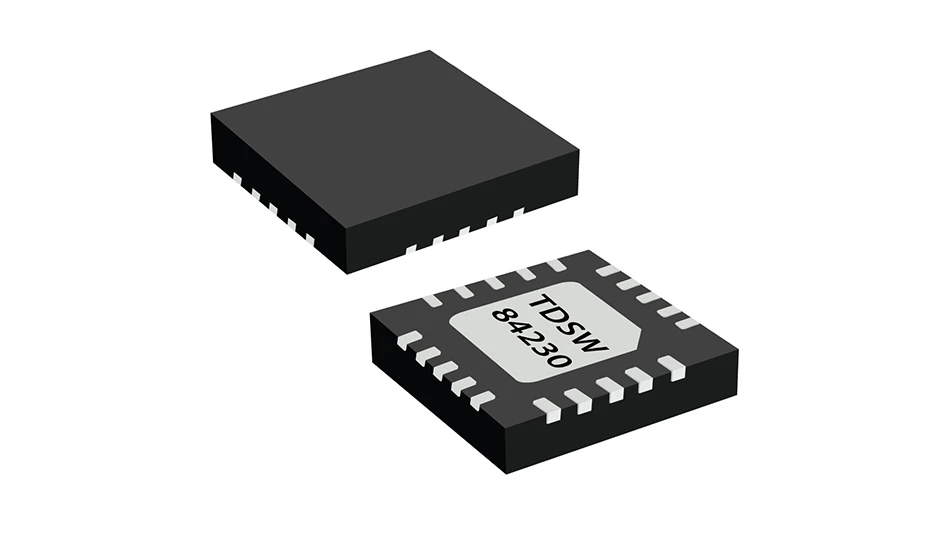

Teledyne HiRel Semiconductors announces the availability of its Gallium Nitride (GaN) high-power RF switch, model TDSW84230EP. This switch offers high peak power and is designed to replace Positive-Intrinsic-Negative (PIN) diode-based RF Switches commonly used in RF front ends of many of today’s tactical and military communication radio systems. Developed using a wide-bandgap GaN High Electron Mobility Transistor (HEMT) process, this switch offers a very high breakdown voltage and high saturation current capabilities and is available in a 16-pin quad-flat no-lead (QFN) 3 mm x 3mm x 0.8mm plastic surface mount package and qualified to a military temperature range of –55⁰C to 125⁰C.
The TDSW84230EP SPDT GaN reflective switch leverages monolithic microwave integrated circuit (MMIC) design techniques and supports a high 20 watts CW power handling, operating from 30MHz to 5GHz. It has a low 0.2dB insertion loss and a high 45dB port isolation offering significant efficiency and board area savings compared to PIN diode architectures.
“Today, we’re releasing our latest RF GaN Switch, optimized for Aerospace and Defense applications,” says Mont Taylor, Vice President, and Business Development Manager at Teledyne HiRel. “To meet the multiple wideband continuous operation demand in today’s military and defense software defined radio architectures, this high-power GaN switch delivers an ideal solution for replacing traditional PIN diode switches, tolerating up to 900mA/mm saturation currents and high voltage RF-power handling capabilities. The inherent high breakdown voltage and carrier density of GaN technology enable higher operating power capabilities while delivering high linearity to better support harmonic and spurious signal requirements associated with traditional PIN diode switches.”
The TDSW84230EP devices are available for order and shipment today, from Teledyne HiRel Semiconductors or an authorized distributor, in commercial versions. They are shipped from our DoD Trusted Facility in Milpitas, California.
